Altera offers a PCI Express to DDR2 SDRAM reference design that demONSTrates the operation of Alteras PCI Express (PCIe) MegaCorereg; product. This reference design provides an interface between the ALTErareg; PCIe MegaCore function and a 64-bit, 256-Mbyte DDR2 SDRAM memory that enables access to external DDR2 SDRAM memory through the PCIe bus. It also represents an example of a typical user application that interfaces to the system side of the Altera PCIe MegaCore function.

Features

Supports PCIe root complex to PCIe end point memory read and write transactions

Supports PCIe end point to PCIe root complex direct memory access (DMA) read and write transactions

Demonstrates how to use the PCIe MegaCore function

Demonstrates how to use the DDR2 SDRAM Controller MegaCore function

Uses the dual-port FIFO buffer function from the library of parameterized modules (LPM)

Uses the Stratixreg; II GX FPGA with internal transceivers
Demonstrated Altera Technology

Stratix II GX FPGAs with transceiver technology

Altera PCIe MegaCore function

Altera DDR2 SDRAM Controller MegaCore function

点此查看PCI Express到DDR2 SDRAM 参考设计

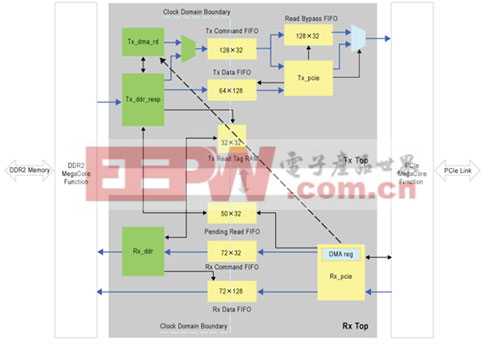

PCI Express到DDR2 SDRAM 参考设计方框图
